Mechanical Presses

The technology of IDS is the technology of the world in the result.

C-Type Press
Semi-H Type Press
H-Type Press
H-Type Crankless Press

C-Type Press

ICS / ICSL
ICD

ICS

※ Click for big picture
Machine features

Suitable design for stamping, drawing, blanking and progressive processing.

The optimum design for High rigidity and High accuracy with four face gibs. And soft wet clutch & brake.

Automatic circulated lubrication system.

Hydraulic overload protector with high performance.

Easy handling system by compact electrical control.

Suitable for robot automation application.

Standard Accessories (* : option)

photo electric safety device
rotary cam switch / encoder
continuous stop function
automatic lubrication device
air ejector
overrun detective device
crank angle indicator
electromotive slide adjustment device
slide adjustment counter
stepless speed change device
overload protector
die cushion *
knockout device *
Q.D.C system *
motor change over switch *

※ We accept an order special specification.

※ We after the specification for the purpose of imprevement.

ICSL

※ Click for big picture.
Machine features

Realizing reliable mechanism by using a link installed inside the driving gear adopted by our company.

Excellent in fast response and maintenance with flywheel embedded pneumatic operating wet clutch brake.

Advantageous to use a large and big mold by adopting four sides guide method.

Realizing low noise and high-rigidity by Gear Drive System operating in oil.

Suitable for molding such as drawing products by motion to maximize the time to stay in the bottom dead point

Minimizing the damage of mold by optimizing the motion of the molding parts and non-molding parts.

Model : ICSL-110,160,200,250,300TON

Standard Accessories (* : option)

photo electric safety device
rotary cam switch / encoder
continuous stop function
automatic lubrication device
air ejector
overrun detective device
crank angle indicator
electromotive slide adjustment device
slide adjustment counter
stepless speed change device
overload protector
die cushion *
knockout device *
Q.D.C system *
motor change over switch *

※ We accept an order special specification.

※ We after the specification for the purpose of imprevement.

C.G. of Slide movement / Link Structure

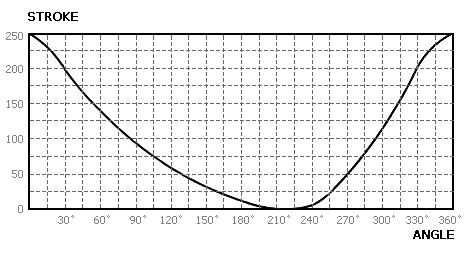

- C.G. of Slide movement
- Link Structure

Outside view(ICS/ICSL)

Machine specifications(ICS/ICSL)

Main Specification	ICS-60		ICS-80		ICS-110		ICS-160		ICS-200		ICS-250		ICS-300	ICS-350
Main Specification	ST	HS	ST	HS	ST	HS	ST	HS	ST	HS	ST	HS	ST	ST
Capacity(Ton)	60		80		110		160		200		250		300	350
Tonnage Rating Point(mm)	4	1.6	5	3	6	3	7	4	7	4	7	4	7	7
Stroke(mm)	110	50	140	70	160	70	200	100	250	100	250	100	250	300
Stroke Per Minute(spm)	70	150	60	130	50	130	45	80	40	70	40	60	40	40
Die Height(mm)	310	330	350	385	400	385	450	500	500	550	600	650	550	600
Open Height(mm)	420	380	490	455	560	455	650	600	750	650	850	750	800	900
Slide Adjustment(mm)	75		80		100		110		120		130		130	150
Slide Area(LR×FB)	620X360		700X450		800X500		1000X700		1150X700		1400X800		1500X800	1800X900
Bolster Area(LR×FB)	900X550		1060X600		1200X660		1380X760		1500X900		1600X950		1800X1000	1800X1000
Main Motor(kw×p)	5.5X4		7.5X4		11X4		15X4		18.5X4		22X4		30X4	30X4
Slide Adjust Motor(kw×p)	0.4X4		0.75X4		1.5X4		1.5X4		1.5X4		2.2X4		2.2X4	2.2X4

ICD

※ Click for big picture.
Machine features

Suitable for progressive and transfer work with larger slide and winder bloster area.

The optimum design for High rigidity and High accuracy with six face gibs. And soft clutch & brake of wet type.

Automatic circulated lubrication system.

Hydraulic overload protector with high performance.

Improved dynamic precision.

Standard Accessories (* : option)

photo electric safety device
rotary cam switch / encoder
continuous stop function
automatic lubrication device
air ejector
overrun detective device
crank angle indicator
electromotive slide adjustment device
slide adjustment counter
stepless speed change device
overload protector
die cushion *
knockout device *
Q.D.C system *
motor change over switch *

※ We accept an order special specification.

※ We after the specification for the purpose of imprevement.

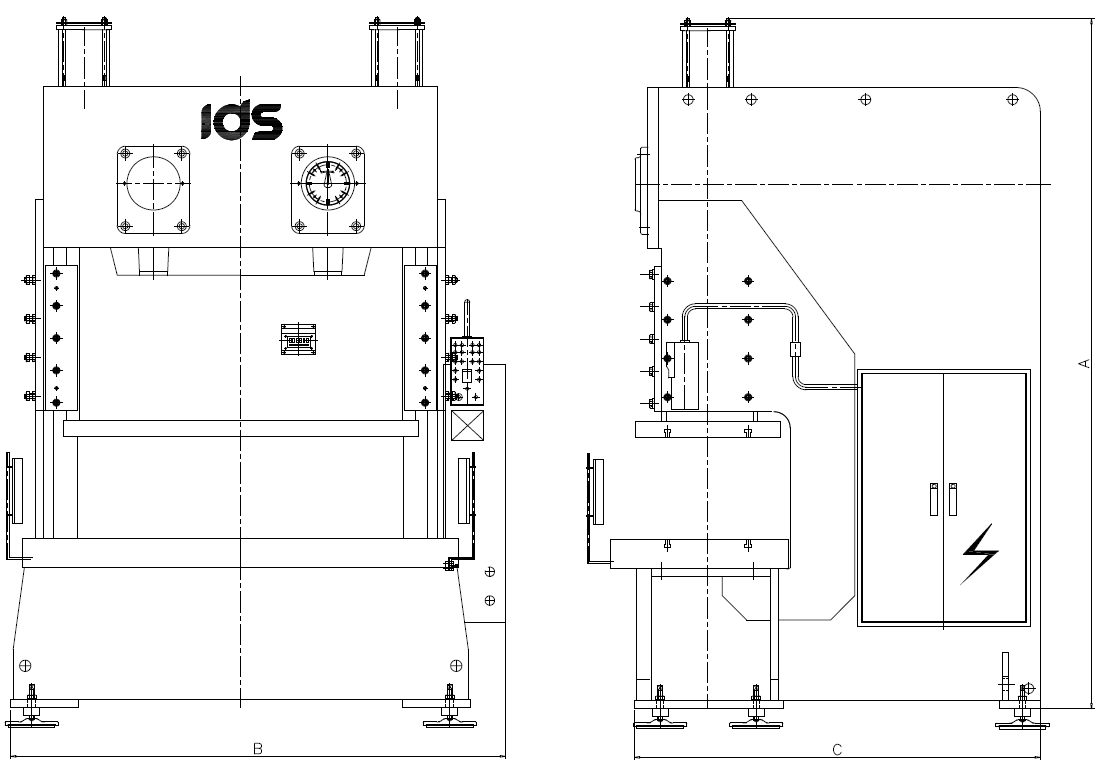

Outside view

Machine specifications

Main Specification	ICD-80	ICD-110	ICD-160	ICD-200	ICD-250	ICD-300
Capacity(Ton)	80	110	160	200	250	300
Tonnage Rating Point(mm)	4	5	6	7	7	7
Stroke(mm)	140	160	200	200	250	250
Stroke Per Minute(spm)	60	55	50	40	35	30
Die Height(mm)	350	400	450	500	530	600
Open Height(mm)	490	560	650	700	780	850
Slide Adjustment(mm)	80	100	110	120	130	130
Slide Area(LR×FB)	1300X450	1450X500	1700X580	2000X700	2200X750	2400X800
Bolster Area(LR×FB)	1600X600	1800X660	2100X760	2450X900	2700X950	2700X1000
Main Motor(kw×p)	11X4	11X4	15X4	18.5X4	22X4	30X4
Slide Adjust Motor(kw×p)	2.2X4	2.2X4	2.2X4	2.2X4	3.7X4	3.7X4

IH1

※ Click for big picture.
Machine features

One body type side frame construction of high rigidity.

Solved the phenomenon of front spread occurred in processing in C type press.

Wide suspension point makes the work of multi-process possible.

Automatic circulated lubrication system that supplies oil to every moving part of the press.

Possible to carry out connection and disconnection of high frequency through sufficient test of durability.

IHL1

※ Click for big picture.
Machine features

Dynamic precision is improved since the phenomenon of front spread occurred in processing in C type press is fundamentally solved.

Suitable structural design for transfer and progressive processing.

Advantage to a continuous molding operation by securing a large work space.

Realizing reliable mechanism by using a link installed inside the driving gear adopted by our company.

Excellent in fast response and maintenance with flywheel embedded pneumatic operating wet clutch brake.

Minimizing the damage of mold by optimizing the motion of the molding parts and non-molding parts

Model : IHL1-110,160,200,250,300,350,400,500TON

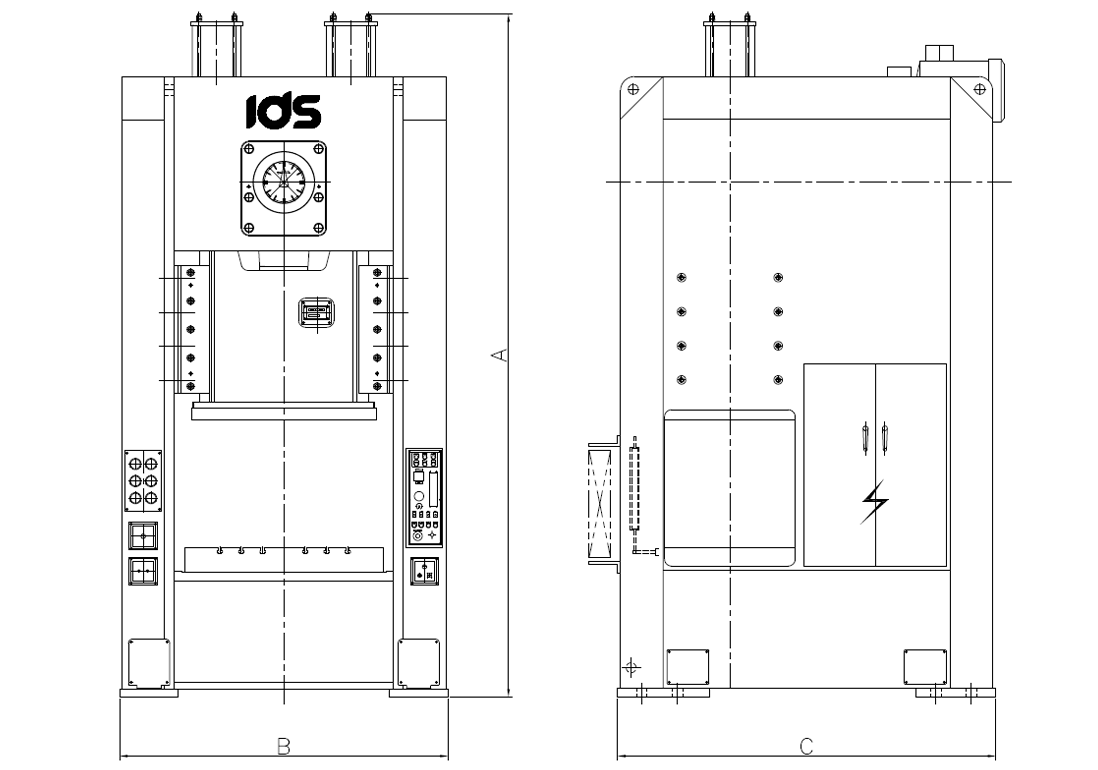

Outside view(IH1/IHL1)

Machine specifications(IH1/IHL1)

Main Specification	IH1-200	IH1-250	IH1-300	IH1-350	IH1-400	IH1-500
Capacity(Ton)	200	250	300	350	400	500
Tonnage Rating Point(mm)	7	7	7	7	7	7
Stroke(mm)	200	250	280	300	300	300
Stroke Per Minute(spm)	40	40	40	35	35	35
Die Height(mm)	500	550	550	550	550	600
Open Height(mm)	700	800	830	850	850	900
Slide Adjustment(mm)	120	120	130	130	130	150
Slide Area(LR×FB)	1270X700	1400X800	1400X800	1500X850	1500X850	1700X1000
Bolster Area(LR×FB)	1300X850	1500X900	1500X900	1600X950	1600X1000	1800X1100
Main Motor(kw×p)	18.5X4	22X4	30X4	30X4	37X4	45X4
Slide Adjust Motor(kw×p)	2.2X4	2.2X4	2.2X4	3.7X4	3.7X4	3.7X4

IH2

※ Click for big picture.
Machine features

One body type side frame construction of high rigidity.

Solved the phenomenon of front spread occurred in processing in C type press.

Wide suspension point makes the work of multi-process possible.

Automatic circulated lubrication system that supplies oil to every moving part of the press.

Possible to carry out connection and disconnection of high frequency through sufficient test of durability.

Standard Accessories (* : option)

photo electric safety device
rotary cam switch / encoder
continuous stop function
automatic lubrication device
air ejector
overrun detective device
crank angle indicator
electromotive slide adjustment device
slide adjustment counter
stepless speed change device
overload protector
die cushion *
knockout device *
Q.D.C system *
motor change over switch *

※ We accept an order special specification.

※ We after the specification for the purpose of imprevement.

IHL2

Machine features

Dynamic precision is improved since the phenomenon of front spread occurred in processing in C type press is fundamentally solved.

Suitable structural design for transfer and progressive processing.

Advantage to a continuous molding operation by securing a large work space.

Realizing reliable mechanism by using a link installed inside the driving gear adopted by our company.

Excellent in fast response and maintenance with flywheel embedded pneumatic operating wet clutch brake.

Minimizing the damage of mold by optimizing the motion of the molding parts and non-molding parts

Model : IHL2-200,250,300,350,400,500,600,800TON

Standard Accessories (* : option)

photo electric safety device
rotary cam switch / encoder
continuous stop function
automatic lubrication device
air ejector
overrun detective device
crank angle indicator
electromotive slide adjustment device
slide adjustment counter
stepless speed change device
overload protector
die cushion *
knockout device *
Q.D.C system *
motor change over switch *

※ We accept an order special specification.

※ We after the specification for the purpose of imprevement.

C.G. of Slide movement / Link Structure

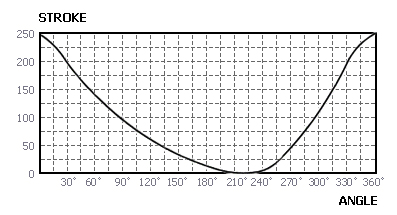

- C.G. of Slide movement
- Link Structure

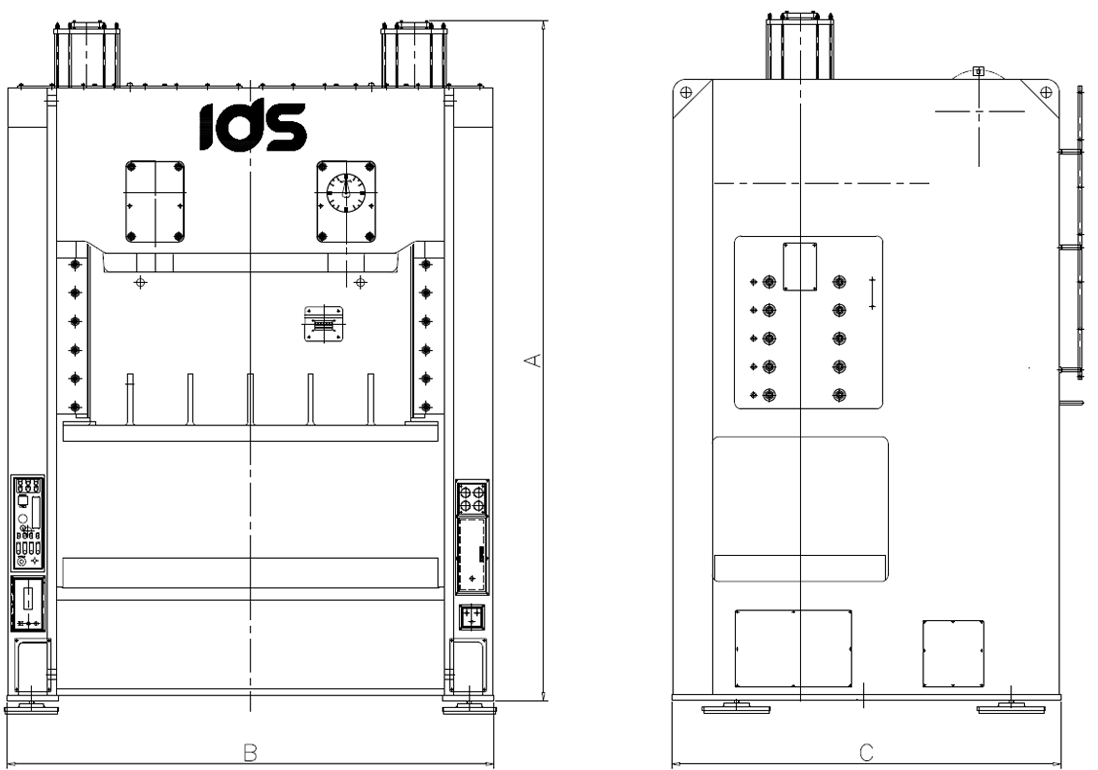

Outside view(IH2/IHL2)

Machine specifications(IH2/IHL2)

Main Specification	IH2/IHL2-200	IH2/IHL2-250	IH2/IHL2-300	IH2/IHL2-350	IH2/IHL2-400	IH2/IHL2-500	IH2/IHL2-600	IH2/IHL2-800
Capacity(Ton)	200	250	300	350	400	500	600	800
Tonnage Rating Point(mm)	7	7	7	7	7	7	7	7
Stroke(mm)	250	250	250	300	300	350	350	350
Stroke Per Minute(spm)	45	40	35	30	30	30	30	30
Die Height(mm)	500	550	600	600	600	600	600	700
Open Height(mm)	750	800	850	900	900	900	900	1000
Slide Adjustment(mm)	120	120	120	120	120	120	150	150
Slide Area(LR×FB)	2100X750	2200X850	2200X900	2500X900	2500X1100	2800X1300	3000X1400	3200X1400
Bolster Area(LR×FB)	2200X800	2400X900	2400X1000	2600X1000	2700X1200	2800X1300	3000X1400	3200X1400
Main Motor(kw×p)	18.5X4	22X4	30X4	30X4	37X4	45X4	55X4	75X4
Slide Adjust Motor(kw×p)	3.7X4	3.7X4	5.5X4	5.5X4	5.5X4	5.5X4	5.5X4	7.5X4

H-Type Press

IC1 / ICL1
IC2 / ICL2

IC1

※ Click for big picture.
Machine features

Suitable design for blanking, drawing, and piercing etc. with high torque.

Excellent rigidness with strong frame of 2 point straight side type.

Advanced accuracy by 8 face gibs.

Suitable for application of automation devices such as robot.

Suitable for a wide range of sheet metal working with large stroke.

Excellent precision by plunger guide.

centralized automatic re-circulating lubrication system.

Standard Accessories (* : option)

photo electric safety device
rotary cam switch / encoder
continuous stop function
automatic lubrication device
air ejector
overrun detective device
crank angle indicator
electromotive slide adjustment device
slide adjustment counter
stepless speed change device
safety block
motor change over switch
overload protector
die cushion *
knockout device *
Q.D.C system *
touch panel operation monitor *

※ We accept an order special specification.

※ We after the specification for the purpose of imprevement.

ICL1

※ Click for big picture.
Machine features

Suitable design for blanking, drawing, and piercing etc. with high torque.

Excellent rigidness with strong frame of 2 point straight side type.

Advanced accuracy by 8 face gibs.

Suitable for application of automation devices such as robot.

Suitable for a wide range of sheet metal working with large stroke.

Excellent precision by plunger guide.

centralized automatic re-circulating lubrication system.

Machine specifications(IC1/ICL1)

ITEMS	Unit	200	300	400	500	600	800
Capacity	Ton	200	300	400	500	600	800
B.D.C	mm	10	10	10	10	10	10
Stroke Length	mm	250	250	300	300	300	350
Stroke Per Minute	SPM	15~30	15~30	15~30	15~30	10~20	10~20
Die Height	mm	600	600	650	650	650	650
Slide adjustment	mm	130	130	130	130	130	130
Slide area	mm	800X900	900X1000	1000X1100	1100X1200	1200X1300	1300X1400
Bolster area	mm	900X1000	1000X1100	1100X1200	1200X1300	1300X1400	1400X1500
Main Motor	kw×P	18.5×4	30×4	37×4	45×4	55×4	75×4
Slide adjust motor	kw×P	2.2×4	2.2×4	3.7×4	3.7×4	5.5×4	5.5×4
Working height	mm	750	750	750	750	750	750
Air pressure	kgf/cm2	5	5	5	5	5	5

IC2

※ Click for big picture.
Machine features

Suitable design for blanking, piercing, stamping, transfer and progressive processing.

Suitable for electric electronic part processing.

Low noise and high rigidity.

Advanced accuracy by 8 face gibs.

Soft clutch & brake of wet type.

Standard Accessories (* : option)

photo electric safety device
rotary cam switch / encoder
continuous stop function
automatic lubrication device
air ejector
overrun detective device
crank angle indicator
electromotive slide adjustment device
slide adjustment counter
stepless speed change device
safety block
motor change over switch
overload protector
die cushion *
knockout device *
Q.D.C system *
touch panel operation monitor *

※ We accept an order special specification.

※ We after the specification for the purpose of imprevement.

ICL2

※ Click for big picture.
Machine features

Suitable design for blanking, piercing, stamping, transfer and progressive processing.

Suitable for electric electronic part processing.

Low noise and high rigidity.

Advanced accuracy by 8 face gibs.

Soft clutch & brake of wet type.

Standard Accessories (* : option)

photo electric safety device
rotary cam switch / encoder
continuous stop function
automatic lubrication device
air ejector
overrun detective device
crank angle indicator
electromotive slide adjustment device
slide adjustment counter
stepless speed change device
safety block
overload protector
die cushion *
knockout device *
Q.D.C system *
motor change over switch *
touch panel operation monitor *

※ We accept an order special specification.

※ We after the specification for the purpose of imprevement.

C.G. of Slide movement / Link Structure

- C.G. of Slide movement
- Link Structure

Machine specifications(IC2/ICL2)

ITEMS	Unit	200	300	400	500	600	800	1000	1200
Capacity	Ton	200	300	400	500	600	800	1000	1200
B.D.C	mm	10	10	10	10	10	10	10	10
Stroke Length	mm	300	300	300	350	450	450	450	450
Stroke per minute	SPM	12~24	12~24	12~24	12~24	12~24	12~24	12~24	12~24
Die height	mm	600	650	750	800	850	850	850	850
Slide adjustment	mm	160	200	200	250	250	250	250	250
Working height	mm	750	750	750	750	750	750	750	750
Slide area	mm	2500X1200	2500X1500	2500X1600	2500X1600	3000X1600	3000X1600	3500X1600	3500X1700
Bolster area	mm	2500X1200	2500X1500	2500X1600	2500X1600	3000X1600	3000X1600	3500X1600	3500X1700
Main Motor	kw×P	18.5×4	30×4	37×4	45×4	75×4	90×4	132×4	160×4
Slide adjust motor	kw×P	7.5×6	7.5×6	11×6	11×6	15×6	15×6	15×6	15×6
Working height	mm	5	5	5	5	5	5	5	5

H-Type Crankless Press

IE1 / IEL1
IE2 / IEL2
IEL4

IE1

※ Click for big picture.
Machine features

Securing a large work space with a powerful frame of 2 point straight side type (H).

Widely using such as blanking, drawing, piercing and etc by high torque.

Maintaining a stable precision of 4-sides guide method.

Enhancing automation equipment and the productivity.

Suitable for a wide range of sheet metal working as large strokes.

Applied high torsional strength with Eccentric Gear and adequate deep drawing model.

Remove thrust load at driving operation and excellence of lubrication ability by the adoption of plunger guide.

In case of occurrence for the disorder of lubrication points, the adoption of centralized automatic re-circulating lubrication system which is stopped immediately.

High reliability of insert Wet Type Clutch/Brake ensures Forging and excellence in maintenance.

Model : IE1-300,400,500,600,800TON

Standard Accessories (* : option)

photo electric safety device
rotary cam switch / encoder
continuous stop function
automatic lubrication device
air ejector
overrun detective device
crank angle indicator
electromotive slide adjustment device
slide adjustment counter
stepless speed change device
safety block
motor change over switch
overload protector
die cushion *
knockout device *
Q.D.C system *
touch panel operation monitor *

※ We accept an order special specification.

※ We accept an order special specification.We accept an order special specification.

IEL1

※ Click for big picture.
Machine features

Securing a large work space with a powerful frame of 2 point straight side type (H).

Widely using such as blanking, drawing, piercing and etc by high torque.

Maintaining a stable precision of 6-sides guide method.

Enhancing automation equipment and the productivity.

Suitable structural design for stamping and drawing processing.

Advantage to a continuous molding operation by securing a large work space.

Realizing reliable mechanism by using a link installed inside the driving gear adopted by our company.

Excellent in fast response and maintenance with flywheel embedded pneumatic operating wet clutch brake.

Realizing low noise and high-rigidity by Gear Drive System operating in oil.

Suitable for molding such as drawing products by motion to maximize the time to stay in the bottom dead point.

Minimizing the damage of mold by optimizing the motion of the molding parts and non-molding parts.

Model : IEL1-300,400,500,600,800,1000,1200TON

Machine specifications(IE1/IEL1)

H Type CRANKLESS 1-POINT Specification(IE1/IEL1)
Items	UNIT	300	400	500	600	800
Capcity	Ton	300	400	500	600	800
B.D.C	mm	13	13	13	13	13
Stroke length	mm	500	500	600	600	600
Stroke Per Minute	SPM	10~24	10~24	10~24	10~24	10~24
Die Height	mm	800	800	800	800	800
Slide Adjustment	mm	400	400	400	400	400
Slide Area	mm	900X1000	1000X1100	1100X1200	1200X1300	1300X1400
Bolster Area	mm	1000X1100	1100X1200	1200X1300	1300X1400	1400X1500
Main Motor	Kw×P	55X4	75X5	90X4	90X4	110X4
Slide Adjust Motor	Kw×P	2.2X4	3.7X4	3.7X4	5.5X4	5.5X4
Working Height	mm	750	750	750	750	750
Air Pressure	kgf/cm2	5	5	5	5	5

IE2

※ Click for big picture.
Machine features

Securing a large work space with a powerful frame of 2 point straight side type (H).

Widely using such as blanking, drawing, piercing and etc by high torque.

Maintaining a stable precision of 4-sides guide method.

Enhancing automation equipment and the productivity.

Suitable for a wide range of sheet metal working as large strokes.

Applied high torsional strength with Eccentric Gear and adequate deep drawing model.

Remove thrust load at driving operation and excellence of lubrication ability by the adoption of plunger guide.

In case of occurrence for the disorder of lubrication points, the adoption of centralized automatic re-circulating lubrication system which is stopped immediately.

High reliability of insert Wet Type Clutch/Brake ensures Forging and excellence in maintenance.

Model : IE2-300,400,500,600,800,1000,1200TON

IEL2

※ Click for big picture.
Machine features

Securing a large work space with a powerful frame of 2 point straight side type (H).

Widely using such as blanking, drawing, piercing and etc by high torque.

Maintaining a stable precision of 6-sides guide method.

Enhancing automation equipment and the productivity.

Suitable structural design for stamping and drawing processing.

Advantage to a continuous molding operation by securing a large work space.

Realizing reliable mechanism by using a link installed inside the driving gear adopted by our company.

Excellent in fast response and maintenance with flywheel embedded pneumatic operating wet clutch brake.

Realizing low noise and high-rigidity by Gear Drive System operating in oil.

Suitable for molding such as drawing products by motion to maximize the time to stay in the bottom dead point.

Minimizing the damage of mold by optimizing the motion of the molding parts and non-molding parts.

Model : IEL2-300,400,500,600,800,1000,1200TON

Machine specifications(IE2/IEL2)

H Type CRANKLESS 2-POINT Specification (IE2/IEL2)
OPTION
ITEMS	UNIT	300	400	500	600	800	1000	1200
CAPACITY	Ton	300	400	500	600	800	1000	1200
B.D.C	mm	13	13	13	13	13	13	13
STROKE LENGTH	mm	600	600	600	600	600	600	600
STROKE PER MINUTE	SPM	12~24	12~24	12~24	12~24	12~24	12~24	12~24
DIE HEIGHT	mm	1200	1200	1200	1200	1200	1200	1200
SLIDE ADJUSTMENT	mm	600	600	600	600	600	600	600
Working Height	mm	750	750	750	750	750	750	750
SLIDE AREA	mm	2500x1600	2800X1600	2800X1600	2800X1600	2800X1600	3000X1600	3000X1600
BOLSTER AREA	mm	2500x1600	2800X1600	2800X1600	2800X1600	2800X1600	3000X1600	3000X1600
MAIN MOTOR	Kw×P	55X4	75X5	90X4	90X4	110X4	110X4	135X4
SLIDE ADJUST MOTOR	Kw×P	7.5×6	11×6	11×6	15X6	15X6	15X6	15X6
Working Height	mm	750	750	750	750	750	750	750
Air Pressure	kgf/cm2	5	5	5	5	5	5	5
Die Cushion
Type	1 Pad 2 Cylinder
Capacity	Ton	80	80	100	120	150	180	200
Stroke	mm	300	300	300	300	300	300	300
Stroke Adjust	mm	0~300	0~300	0~300	0~300	0~300	0~300	0~300
Pad Area	mm	2050X1100	2300X1250	2300X1250	2300X1250	2300X1250	2300X1250	2300X1250

IEL4

※ Click for big picture.
Machine features

Securing a large work space with a powerful frame of 2 point straight side type (H).

Widely using such as blanking, drawing, piercing and etc by high torque.

Maintaining a stable precision of 6-sides guide method.

Enhancing automation equipment and the productivity.

Suitable structural design for stamping and drawing processing.

Advantage to a continuous molding operation by securing a large work space.

Realizing reliable mechanism by using a link installed inside the driving gear adopted by our company.

Excellent in fast response and maintenance with flywheel embedded pneumatic operating wet clutch brake.

Realizing low noise and high-rigidity by Gear Drive System operating in oil.

Suitable for molding such as drawing products by motion to maximize the time to stay in the bottom dead point.

Minimizing the damage of mold by optimizing the motion of the molding parts and non-molding parts.

Model : IEL4-300,400,500,600,800,1000,1200TON

Machine specifications

H Type CRANKLESS 4-POINT Specification (IEL4)
OPTION
ITEMS	UNIT	400	500	600	800	1000	1200	1500	2000	2300
CAPACITY	Ton	400	500	600	800	1000	1200	1500	2000	2300
B.D.C	mm	13	13	13	13	13	13	13	13	13
STROKE LENGTH	mm	700	800	800	800	800	800	800	800	800
STROKE PER MINUTE	SPM	10~20	10~20	10~20	10~20	10~20	10~20	10~20	9~18	9~18
DIE HEIGHT	mm	1200	1300	1300	1300	1300	1300	1400	1400	1400
SLIDE ADJUSTMENT	mm	600	600	600	600	600	600	600	600	600
Working Height	mm	750	750	750	750	750	750	750	750	750
SLIDE AREA	mm	3400X2200	3400X2200	3400X2200	3400X2200	3600X2300	3600X2300	4500X2500	4500X2500	4500X2500
BOLSTER AREA	mm	3400X2200	3400X2200	3400X2200	3400X2200	3600X2300	3600X2300	4500X2500	4500X2500	4500X2500
MAIN MOTOR	Kw×P	75X4	90X4	110X4	135X4	150X4	185X4	250X4	315X4	350X4
SLIDE ADJUST MOTOR	Kw×P	15X6	15X6	15X6	15X6	15X6	15X6	22X6	22X6	22X6
Working Height	mm	750	750	750	750	750	750	750	750	750
Air Pressure	kgf/cm2	5	5	5	5	5	5	5	5	5
Die Cushion
Type	1 Pad 2 Cylinder
Capacity	Ton	80	100	120	150	180	200	300	350	350
Stroke	mm	300	300	300	300	300	300	300	350	350
Stroke Adjust	mm	0~300	0~300	0~300	0~300	0~300	0~300	0~350	0~350	0~350
Pad Area	mm	2600X1700	2600X1700	2600X1700	2900X1700	2900X1700	2800X1900	3800X1900	3800X1900	3800X1900
※ We after the specification for the purpose of imprevement.

SiteMap

Download

견적문의

견적을 문의하고 싶으신 분은 아래 글을 작성하여 보내주세요!

사업파트너모집

현창과 함께 할 사업파트너를 모십니다.

Mechanical Presses

C-Type Press

ICS

Machine features

Standard Accessories (* : option)

ICSL

Machine features

Standard Accessories (* : option)

C.G. of Slide movement / Link Structure

Outside view(ICS/ICSL)

Machine specifications(ICS/ICSL)

ICD

Machine features

Standard Accessories (* : option)

Outside view

Machine specifications

Semi-H Type Press

IH1

Machine features

IHL1

Machine features

Outside view(IH1/IHL1)

Machine specifications(IH1/IHL1)

IH2

Machine features

Standard Accessories (* : option)

IHL2

Machine features

Standard Accessories (* : option)

C.G. of Slide movement / Link Structure

Outside view(IH2/IHL2)

Machine specifications(IH2/IHL2)

H-Type Press

IC1

Machine features

Standard Accessories (* : option)

ICL1

Machine features

Machine specifications(IC1/ICL1)

IC2

Machine features

Standard Accessories (* : option)

ICL2

Machine features

Standard Accessories (* : option)

C.G. of Slide movement / Link Structure

Machine specifications(IC2/ICL2)

H-Type Crankless Press

IE1

Machine features

Standard Accessories (* : option)

IEL1

Machine features

Machine specifications(IE1/IEL1)

IE2

Machine features

IEL2

Machine features

Machine specifications(IE2/IEL2)

IEL4

Machine features

Machine specifications
